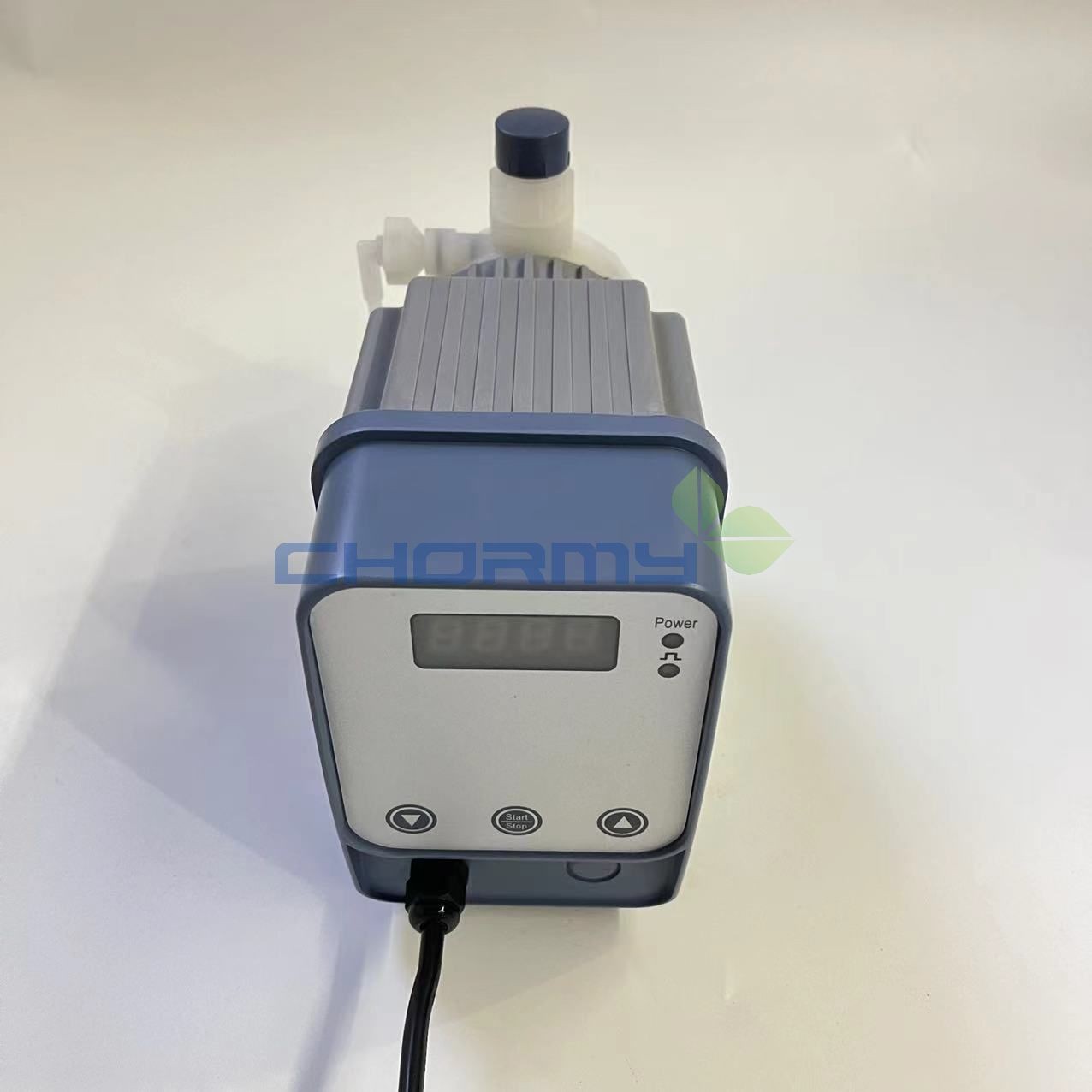

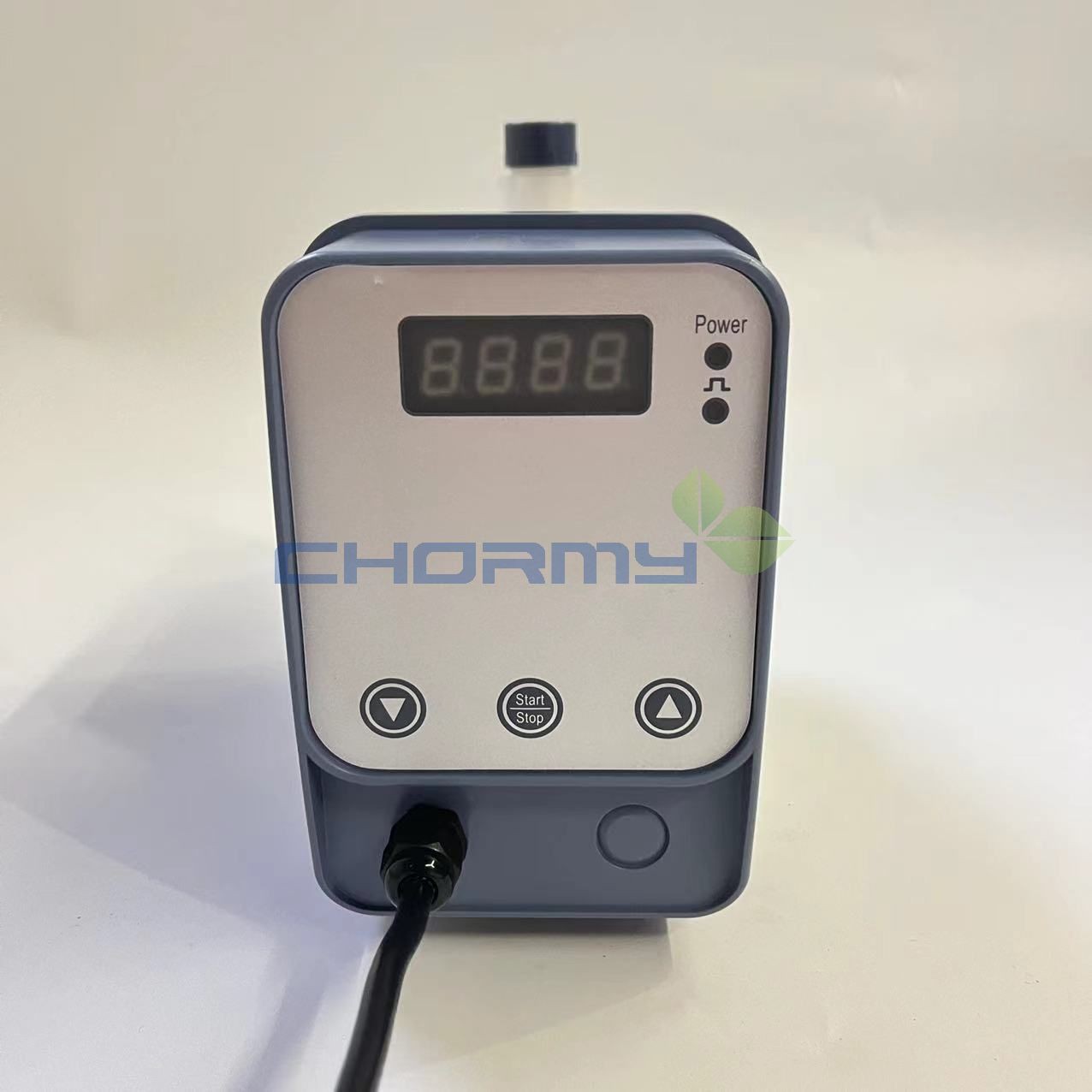

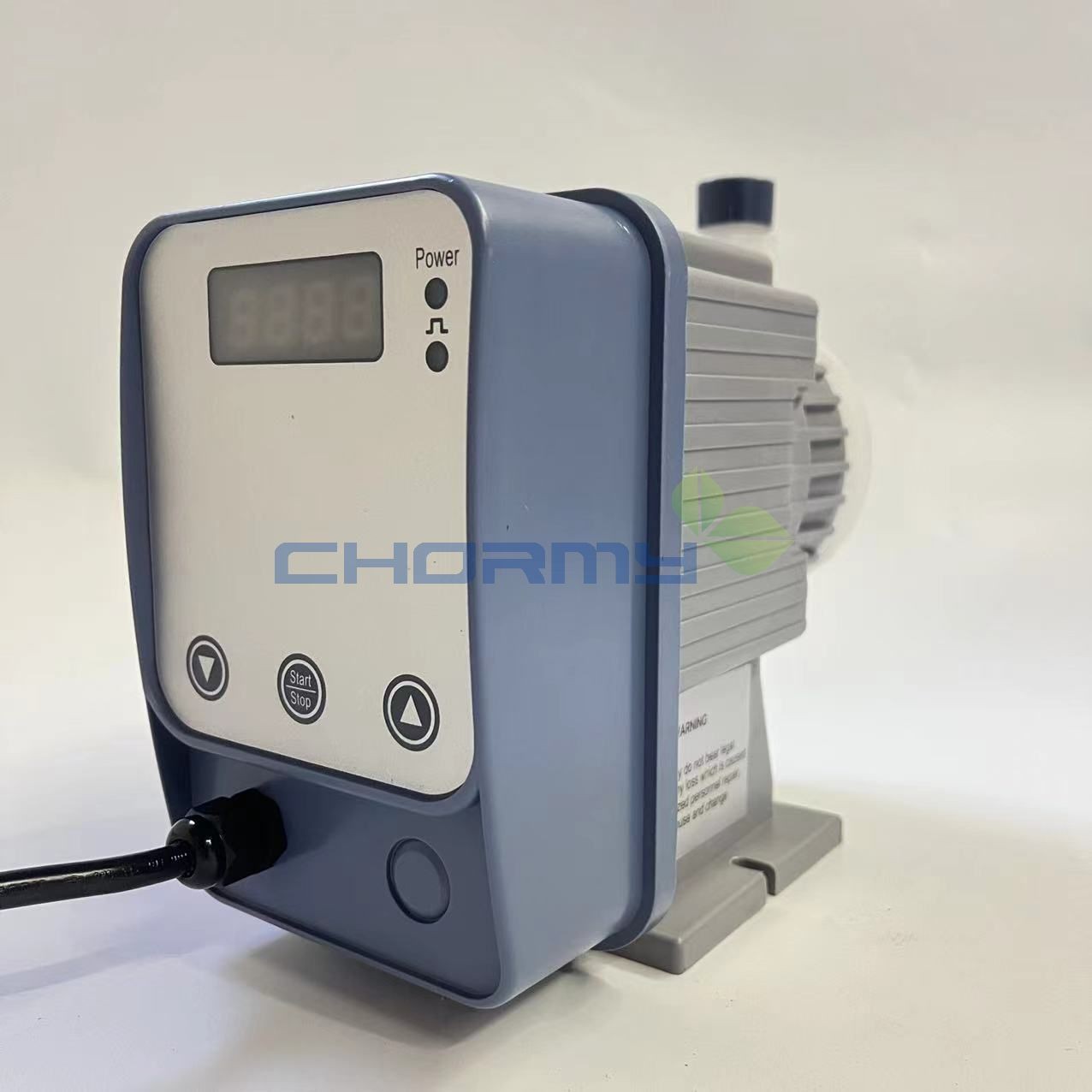

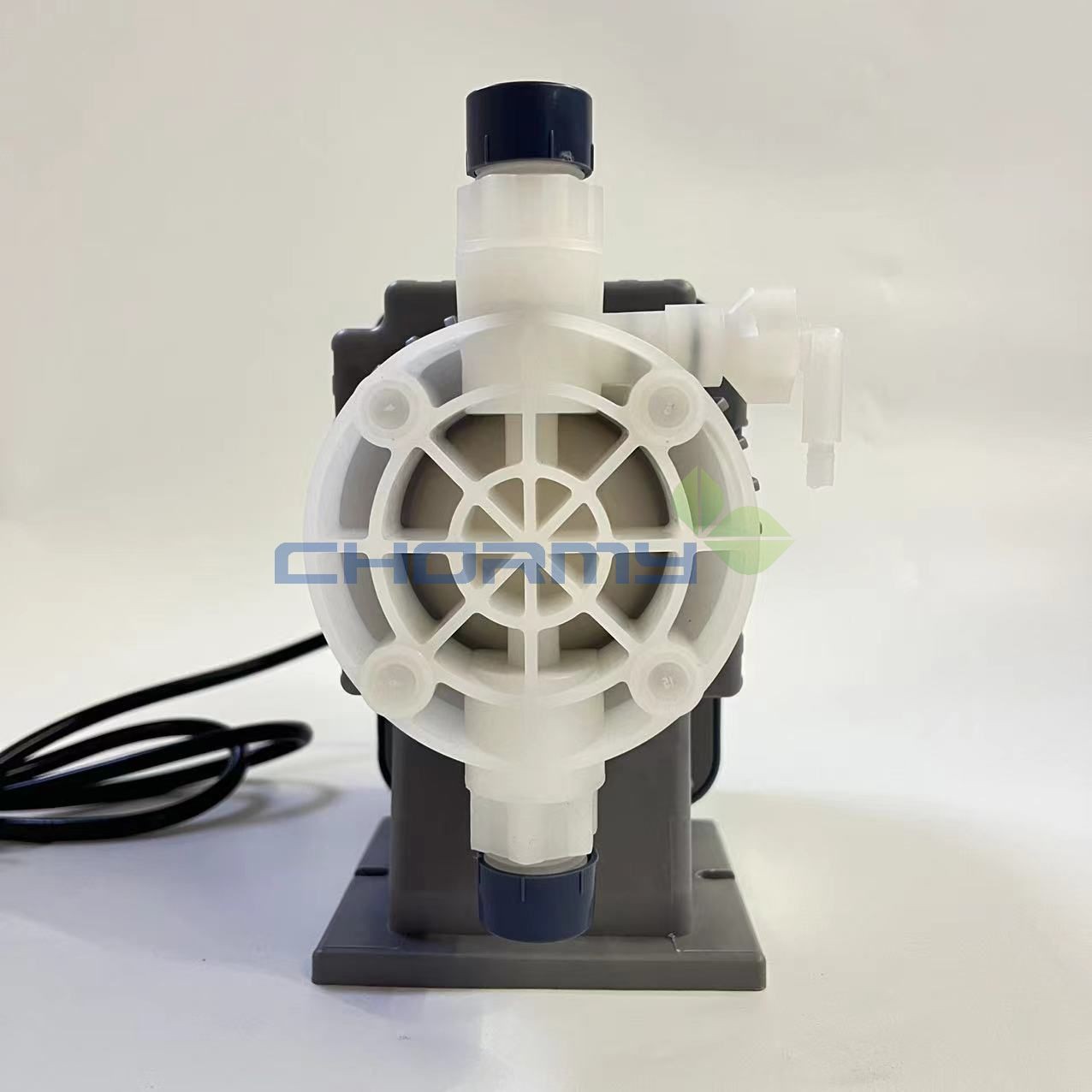

Electromagnetic Diaphragm Metering Pump

Principle of Work：
This product is used to transport chemical agent or liquid. After energized, electromagnetic coil creates magnetic field, which enables push rod to move and diaphragm to deform. Under the action of check valve, fluid is transported to the outlet under pressure. When the power of electromagnetic coil is cut, diagram resets under the action of spring, which enables fluid to be sucked into pump head. The transport of fluid can be completed.



Basic parameters
● Protective level IP55
● Anti-corrosive plastic case
● Standard power supply 220VAC, 50Hz

List of metering pump materials (only the parts contacting the medium)
●Diagram: PTFE
●Pump head: PVC, PP
●One-way valve: CERAMIC
●Seal: FPM
●Suction pipe: PVC, PE, PTFE
●Drain pipe: PE, PTFE
